We will start by importing the packages.
import tensorflow as tf
import numpy as np
from tensorflow.keras.layers import Input
from tensorflow.keras.layers import Conv2D
from tensorflow.keras.layers import MaxPooling2D
from tensorflow.keras.layers import Dropout
from tensorflow.keras.layers import Conv2DTranspose
from tensorflow.keras.layers import concatenateLet us also load and split the data we have.
import os
import numpy as np
import pandas as pd
import imageio
import matplotlib.pyplot as plt
%matplotlib inline
path = ''
image_path = os.path.join(path, './data/CameraRGB/')
mask_path = os.path.join(path, './data/CameraMask/')
image_list_orig = os.listdir(image_path)
image_list = [image_path+i for i in image_list_orig]
mask_list = [mask_path+i for i in image_list_orig]We will split the dataset into unmasked and masked images.
image_list_ds = tf.data.Dataset.list_files(image_list, shuffle=False)
mask_list_ds = tf.data.Dataset.list_files(mask_list, shuffle=False)image_filenames = tf.constant(image_list)
masks_filenames = tf.constant(mask_list)
dataset = tf.data.Dataset.from_tensor_slices((image_filenames, masks_filenames))Normally we normalize the image values by dividing them by 225. This sets them between 0 and 1. However, using tf.image.convert_image_dtype with tf.float32 sets them between 0 and 1 for us.
def process_path(image_path, mask_path):
img = tf.io.read_file(image_path)
img = tf.image.decode_png(img, channels=3)
img = tf.image.convert_image_dtype(img, tf.float32)
mask = tf.io.read_file(mask_path)
mask = tf.image.decode_png(mask, channels=3)
mask = tf.math.reduce_max(mask, axis=-1, keepdims=True)
return img, mask
def preprocess(image, mask):
input_image = tf.image.resize(image, (96, 128), method='nearest')
input_mask = tf.image.resize(mask, (96, 128), method='nearest')
return input_image, input_mask
image_ds = dataset.map(process_path)
processed_image_ds = image_ds.map(preprocess)U-Net
U-Net builds on a previous architecture called the Fully Convolutional Network, which replaces the dense layers found in a typical CNN with a transposed convolution layer that upsample the feature map back to the size of the original input image, while preserving the spatial information.
While using transpose convolutions the input size no longer needs to be fixed, as it does when dense layers are used.
Unfortunately, the final feature layer of the FCN suffers from information loss due to downsampling too much. It then becomes difficult to upsample after so much information has been lost, causing an output that looks rough.
Instead of one transposed convolution at the end of the network, it uses a matching number of convolutions for downsampling the input image to a feature map, and transposed convolutions for upsampling those maps back up to the original input image size. It also adds skip connections, to retain information that would otherwise become lost during encoding. Skip connections send information to every upsampling layer in the decoder from the corresponding downsampling layer in the encoder, capturing finer information while also keeping computation low. These help prevent information loss, as well as model overfitting.

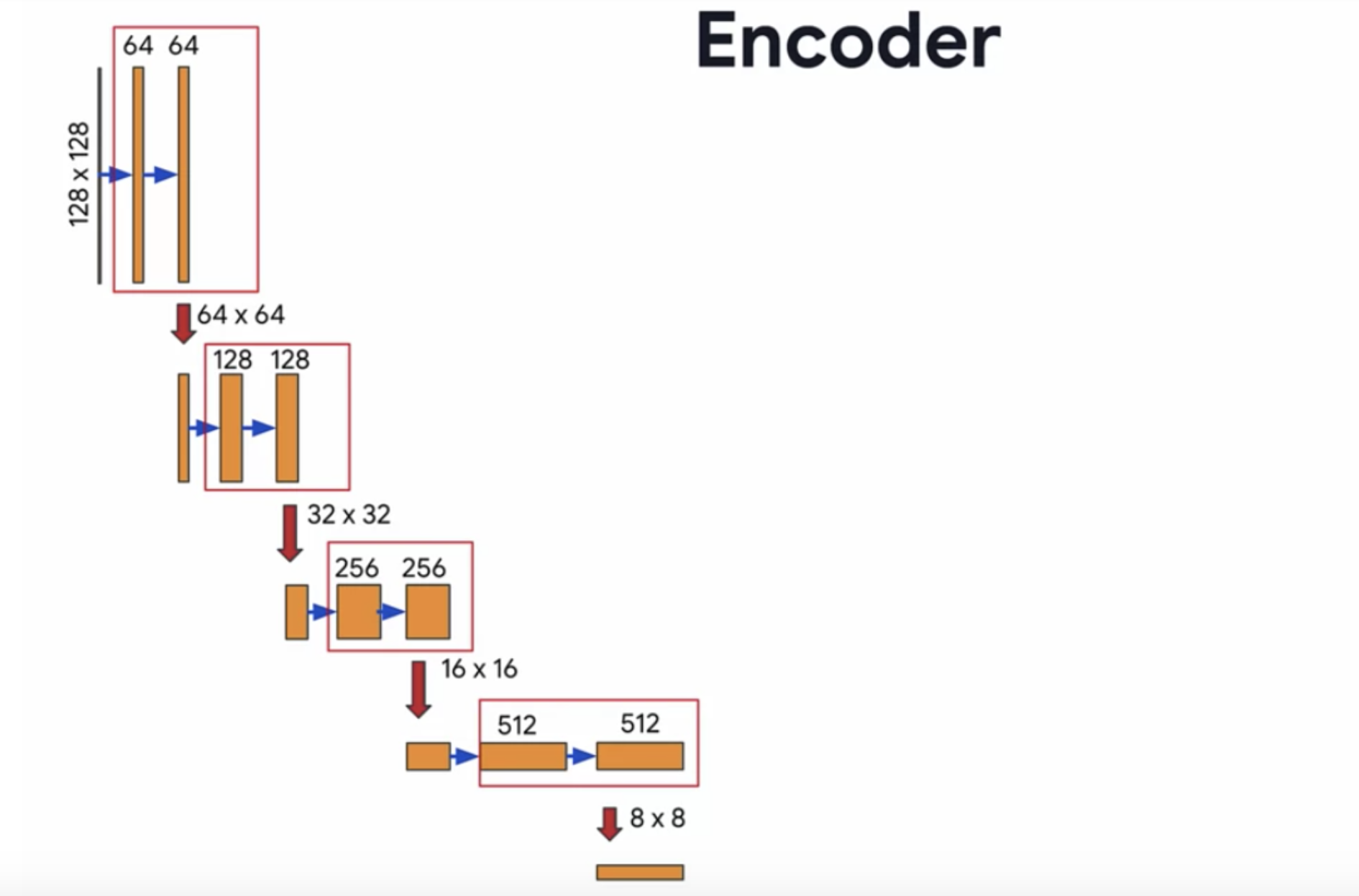

Encoder (Downsampling Block)
Each conv_block() is composed of 2 Conv2D layers with ReLU activation. We apply Dropout and Max-Pooling to some of this blocks. This function returns two tensors :
next_layer: This will go into the next blockskip_connections: This will go into the corresponding decoding block.
def conv_block(inputs=None, n_filters=32, dropout_prob=0, max_pooling=True):
"""
Convolutional downsampling block
Arguments:
inputs -- Input tensor
n_filters -- Number of filters for the convolutional layers
dropout_prob -- Dropout probability
max_pooling -- Use MaxPooling2D to reduce the spatial dimensions of the output volume
Returns:
next_layer, skip_connection -- Next layer and skip connection outputs
"""
conv = Conv2D(n_filters,
(3, 3),
activation='relu',
padding='same',
kernel_initializer='he_normal')(inputs)
conv = Conv2D(n_filters,
(3, 3),
activation='relu',
padding='same',
kernel_initializer='he_normal')(conv)
if dropout_prob > 0:
conv = Dropout(dropout_prob)(conv)
if max_pooling:
next_layer = MaxPooling2D((2, 2))(conv)
else:
next_layer = conv
skip_connection = conv
return next_layer, skip_connectionDecoder (Upsampling Block)

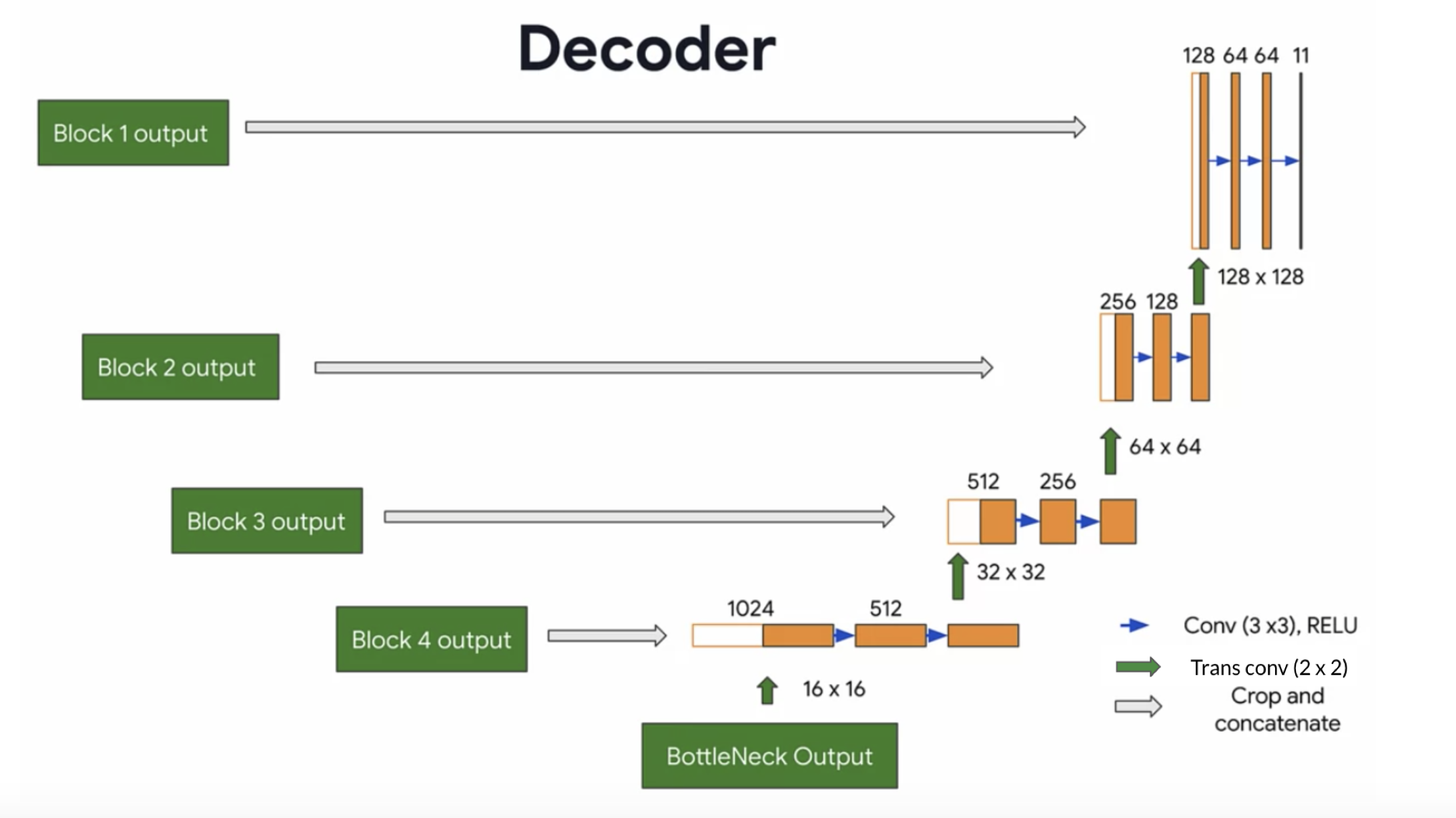

The decoder, or upsampling block, upsamples the features back to the original image size. At each upsampling level, you’ll take the output of the corresponding encoder block and concatenate it before feeding to the next decoder block.
There are two new components in the decoder: up and merge. These are the transpose convolution and the skip connections. In addition, there are two more convolutional layers set to the same parameters as in the encoder.
def upsampling_block(expansive_input, contractive_input, n_filters=32):
"""
Convolutional upsampling block
Arguments:
expansive_input -- Input tensor from previous layer
contractive_input -- Input tensor from previous skip layer
n_filters -- Number of filters for the convolutional layers
Returns:
conv -- Tensor output
"""
up = Conv2DTranspose(
n_filters,
(3, 3),
strides=(2, 2),
padding='same')(expansive_input)
merge = concatenate([up, contractive_input], axis=3)
conv = Conv2D(n_filters,
(3, 3),
activation='relu',
padding='same',
kernel_initializer='he_normal')(merge)
conv = Conv2D(n_filters,
(3, 3),
activation='relu',
padding='same',
kernel_initializer='he_normal')(conv)
return convBuilding the model
def unet_model(input_size=(96, 128, 3), n_filters=32, n_classes=23):
"""
Unet model
Arguments:
input_size -- Input shape
n_filters -- Number of filters for the convolutional layers
n_classes -- Number of output classes
Returns:
model -- tf.keras.Model
"""
inputs = Input(input_size)
cblock1 = conv_block(inputs, n_filters)
cblock2 = conv_block(cblock1[0], 2*n_filters)
cblock3 = conv_block(cblock2[0], 4*n_filters)
cblock4 = conv_block(cblock3[0], 8*n_filters, dropout_prob=0.3)
cblock5 = conv_block(cblock4[0], 16*n_filters, dropout_prob=0.3, max_pooling=False)
ublock6 = upsampling_block(cblock5[0], cblock4[1], 8*n_filters)
ublock7 = upsampling_block(ublock6, cblock3[1], 4*n_filters)
ublock8 = upsampling_block(ublock7, cblock2[1], 2*n_filters)
ublock9 = upsampling_block(ublock8, cblock1[1], n_filters)
conv9 = Conv2D(n_filters,
3,
activation='relu',
padding='same',
kernel_initializer='he_normal')(ublock9)
conv10 = Conv2D(n_classes, 1, padding='same')(conv9)
model = tf.keras.Model(inputs=inputs, outputs=conv10)
return modelNow we set the model dimensions
img_height = 96
img_width = 128
num_channels = 3
unet = unet_model((img_height, img_width, num_channels))
unet.summary()This gives output as follows :
Model: "model_7"
__________________________________________________________________________________________________
Layer (type) Output Shape Param # Connected to
==================================================================================================
input_15 (InputLayer) [(None, 96, 128, 3) 0 []
]
conv2d_83 (Conv2D) (None, 96, 128, 32) 896 ['input_15[0][0]']
conv2d_84 (Conv2D) (None, 96, 128, 32) 9248 ['conv2d_83[0][0]']
max_pooling2d_24 (MaxPooling2D (None, 48, 64, 32) 0 ['conv2d_84[0][0]']
)
conv2d_85 (Conv2D) (None, 48, 64, 64) 18496 ['max_pooling2d_24[0][0]']
conv2d_86 (Conv2D) (None, 48, 64, 64) 36928 ['conv2d_85[0][0]']
max_pooling2d_25 (MaxPooling2D (None, 24, 32, 64) 0 ['conv2d_86[0][0]']
)
conv2d_87 (Conv2D) (None, 24, 32, 128) 73856 ['max_pooling2d_25[0][0]']
conv2d_88 (Conv2D) (None, 24, 32, 128) 147584 ['conv2d_87[0][0]']
max_pooling2d_26 (MaxPooling2D (None, 12, 16, 128) 0 ['conv2d_88[0][0]']
)
conv2d_89 (Conv2D) (None, 12, 16, 256) 295168 ['max_pooling2d_26[0][0]']
conv2d_90 (Conv2D) (None, 12, 16, 256) 590080 ['conv2d_89[0][0]']
dropout_8 (Dropout) (None, 12, 16, 256) 0 ['conv2d_90[0][0]']
max_pooling2d_27 (MaxPooling2D (None, 6, 8, 256) 0 ['dropout_8[0][0]']
)
conv2d_91 (Conv2D) (None, 6, 8, 512) 1180160 ['max_pooling2d_27[0][0]']
conv2d_92 (Conv2D) (None, 6, 8, 512) 2359808 ['conv2d_91[0][0]']
dropout_9 (Dropout) (None, 6, 8, 512) 0 ['conv2d_92[0][0]']
conv2d_transpose_12 (Conv2DTra (None, 12, 16, 256) 1179904 ['dropout_9[0][0]']
nspose)
concatenate_12 (Concatenate) (None, 12, 16, 512) 0 ['conv2d_transpose_12[0][0]',
'dropout_8[0][0]']
conv2d_93 (Conv2D) (None, 12, 16, 256) 1179904 ['concatenate_12[0][0]']
conv2d_94 (Conv2D) (None, 12, 16, 256) 590080 ['conv2d_93[0][0]']
conv2d_transpose_13 (Conv2DTra (None, 24, 32, 128) 295040 ['conv2d_94[0][0]']
nspose)
concatenate_13 (Concatenate) (None, 24, 32, 256) 0 ['conv2d_transpose_13[0][0]',
'conv2d_88[0][0]']
conv2d_95 (Conv2D) (None, 24, 32, 128) 295040 ['concatenate_13[0][0]']
conv2d_96 (Conv2D) (None, 24, 32, 128) 147584 ['conv2d_95[0][0]']
conv2d_transpose_14 (Conv2DTra (None, 48, 64, 64) 73792 ['conv2d_96[0][0]']
nspose)
concatenate_14 (Concatenate) (None, 48, 64, 128) 0 ['conv2d_transpose_14[0][0]',
'conv2d_86[0][0]']
conv2d_97 (Conv2D) (None, 48, 64, 64) 73792 ['concatenate_14[0][0]']
conv2d_98 (Conv2D) (None, 48, 64, 64) 36928 ['conv2d_97[0][0]']
conv2d_transpose_15 (Conv2DTra (None, 96, 128, 32) 18464 ['conv2d_98[0][0]']
nspose)
concatenate_15 (Concatenate) (None, 96, 128, 64) 0 ['conv2d_transpose_15[0][0]',
'conv2d_84[0][0]']
conv2d_99 (Conv2D) (None, 96, 128, 32) 18464 ['concatenate_15[0][0]']
conv2d_100 (Conv2D) (None, 96, 128, 32) 9248 ['conv2d_99[0][0]']
conv2d_101 (Conv2D) (None, 96, 128, 32) 9248 ['conv2d_100[0][0]']
conv2d_102 (Conv2D) (None, 96, 128, 23) 759 ['conv2d_101[0][0]']
==================================================================================================
Total params: 8,640,471
Trainable params: 8,640,471
Non-trainable params: 0
__________________________________________________________________________________________________
Loss Function
In semantic segmentation, we need as many mask as we have object classes. In the dataset we are using, each pixel in every mask has been assigned a single integer probability that it belongs to a certain class, from 0 to num_classes - 1. The correct layer is the layer with the higher probability.
This is different from categorical crossentropy, where the labels should be one-hot encoded (just 0s and 1s). Here, you’ll use sparse categorical crossentropy as your loss function, to perform pixel-wise multiclass prediction. Sparse categorical crossentropy is more efficient than other loss functions when you’re dealing with lots of classes.
unet.compile(optimizer='adam',
loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
metrics=['accuracy'])We train the model using the following hyper-parameters.
EPOCHS = 5
VAL_SUBSPLITS = 5
BUFFER_SIZE = 500
BATCH_SIZE = 32
train_dataset = processed_image_ds.cache().shuffle(BUFFER_SIZE).batch(BATCH_SIZE)
print(processed_image_ds.element_spec)
model_history = unet.fit(train_dataset, epochs=EPOCHS)This gives output :
(TensorSpec(shape=(96, 128, 3), dtype=tf.float32, name=None), TensorSpec(shape=(96, 128, 1), dtype=tf.uint8, name=None))
Epoch 1/5
34/34 [==============================] - 20s 206ms/step - loss: 1.8089 - accuracy: 0.4842
Epoch 2/5
34/34 [==============================] - 2s 64ms/step - loss: 0.7728 - accuracy: 0.8028
Epoch 3/5
34/34 [==============================] - 2s 64ms/step - loss: 0.5109 - accuracy: 0.8579
Epoch 4/5
34/34 [==============================] - 2s 65ms/step - loss: 0.4178 - accuracy: 0.8792
Epoch 5/5
34/34 [==============================] - 2s 65ms/step - loss: 0.3561 - accuracy: 0.8931

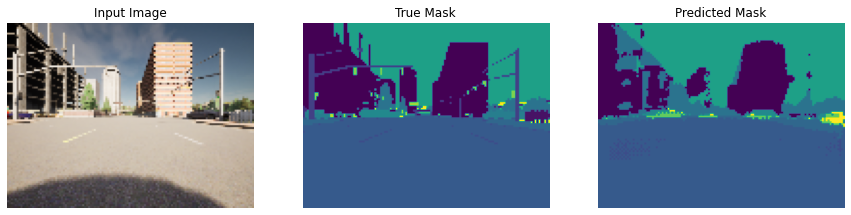

This is the prediction given my our model.
