Bidirectional and Deep RNN

Bidirectional RNN

The issue with unidirectional RNN can be highlighted with the help of some example.

1. He said, “Teddy bears are on sale!”
2. He said, “Teddy Roosevelt was a great President!”
   Here when a RNN goes from left to right coming across the word Teddy, it does not know if it is a human name or a toy. This is true for GRU as well as LSTM.

To explain bidirectional RNN we use a four word input sentence. So as we go forward through as normal RNN, the activation are calculated and the output prediction $\hat{y}$ is given. The backward sequence starts by computing the backward activation with $x^{<4>}$ as input and so on we calculate the subsequent backward activation.

So now for the output prediction we calculate it as follows :

$${\hat{y}}^{<t>}=g(W_y[\overrightarrow{a^{<t>}},\overleftarrow{a^{<t>}}]+b_y)$$

Here the arrows on top of the activation show whether it is a forward or a backward activation.

We can implement this for GRU as well as LSTM blocks.

Deep RNN

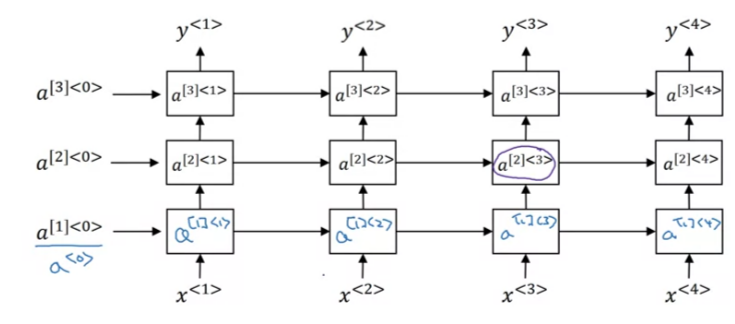

Here what we can do is stack later of RNN on top of each other.

Now let us see how $a^{[2]<3>}$ is computed.

$$a^{[2]<3>}=g(W_a^{[2]}[a^{[2]<2>},a^{[1]<3>}]+b_a^{[2]})$$

Here we can use GRU, LSTM and Bidirectional RNN also.

Now let us see how we can use this sequence model for natural language processing. This start by us learning about Word representation.
